Wireless Wire nRAY, The most compact wireless 2 Gb/s aggregate link in the 1500 m range or more!

The new form-factor has been designed with snowy areas in mind – you won’t have to worry about huge chunks of snow getting stuck and messing with the signal. Due to its size and shape, the nRAY also attracts less unwanted attention. Using the special fine-tune adjustment screws, a perfect alignment can be achieved.

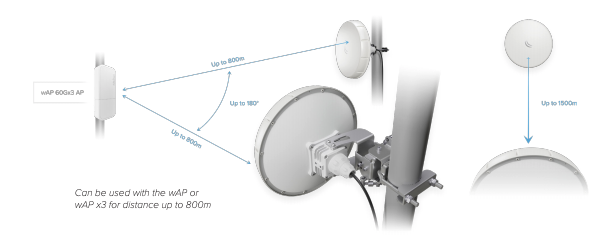

Reach distance in the 1500 m range or more


iOS/Android app for quick and easy configuration

Preconfigured to connect automatically


Secure AES encrypted 60 GHz connection

Dual-core CPU

Extreme versatility powered by RouterOS

Improved snow-resistant design is perfect for harsh weather environments. Cables can no longer limit you!

Our team has gathered and taken into account your feedback to make a worthy successor of our popular Wireless Wire Dish. Now we are proud to present the best plug-and-play 60 GHz point-to-point link solution to date – the Wireless Wire nRAY. It is a kit of two pre-paired devices that make a secure AES encrypted wireless connection.

It can easily cover a distance of 1500 meters and reach fiber-like speed, and we have made some serious structural improvements. With the latest antenna technologies, this device is very compact, but even more durable than its predecessors.

The new form-factor has been designed with snowy areas in mind – you won’t have to worry about huge chunks of snow getting stuck and messing with the signal. Due to its size and shape, the nRAY also attracts less unwanted attention. Using the special fine-tune adjustment screws, a perfect alignment can be achieved.

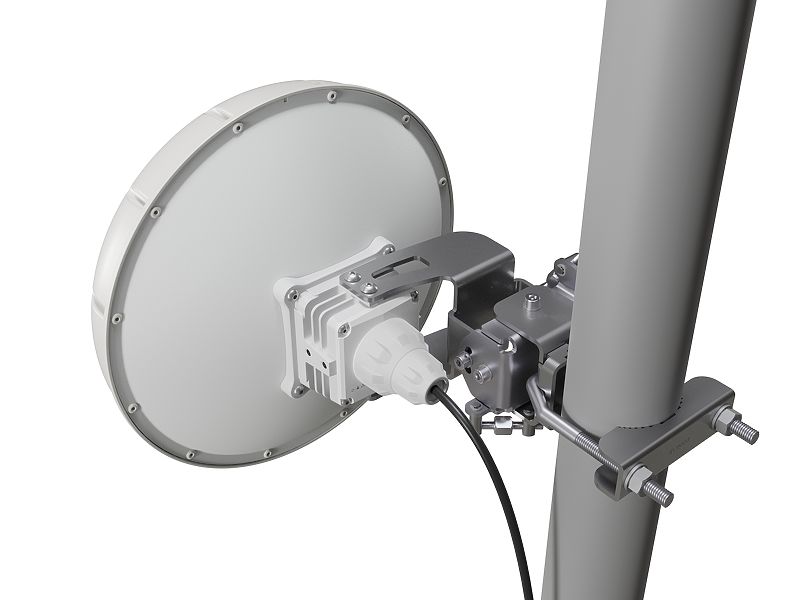

The 60 GHz frequency is unaffected by the crowded wireless spectrum, so you can enjoy a smooth connection even in a busy urban environment. A powerful arm64 dual-core CPU running at 1 GHz ensures wire speed throughput in nearly all packet sizes. The included devices are preconfigured to connect automatically, simply point them at one another and power them on! We have included the power supplies, PoE injectors and a handy precision mount for easier alignment - the solidMOUNT. It is an advanced pole mount metal adapter that allows adjustment both vertically and horizontally.

For even greater precision and easier installation, we have made the nRayAIM-DH1 attachment that can be used to add a scope of your choice. Available separately.

Specifications



Product codenRAYG-60adpair
CPU88F3720, 2 cores, 1 GHz
Number of 1GbE ports1
Size of RAM256 MB
Max EIRP (dBm)55
Dimensions261 x 166 mm
Operating systemRouterOS, License level 3
Operating temperature-40°C to +70°C



Powering



PoE-in(12 - 57 V) 802.3af/at
Supported input voltagePoE-in (18-28 V)
Power adapter nominal voltage24 V
Power adapter nominal current0.38 A
Max power consumption without attachments6 W
Max power consumption30 W

Certification & Approvals



CertificationCE/RED, FCC, IC, EAC, ROHS
