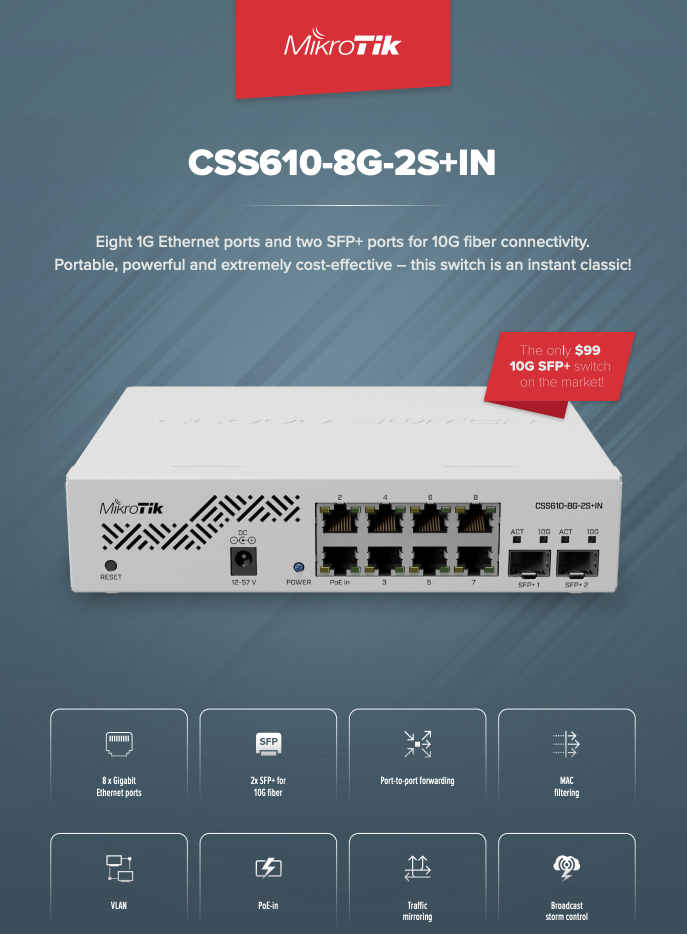

CSS610-8G-2S+IN, Portable, powerful and extremely cost-effective – this switch is an instant classic!

Introducing first 10G switch for only $99! A switch with 8x 1G Ethernet ports and 2x SFP+ ports for 10G fiber connectivity. Portable, powerful and extremely cost-effective – this tiny, yet powerful switch is an instant classic.

With 8 x 1G Ethernet ports and 2 x 10G SFP+ ports this switch is the fastest device in this size and price category on the market!

Cloud Smart Switch 610-8G-2S+IN is our answer to the everlasting demand for more power in a small and simple package. It comes with the lightweight SwOS which is easy to configure from your web browser. It gives you all the basic functionality for a managed switch, and more: you can manage port-toport forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.

Despite its compact size, this switch provides serious performance:

Non-Blocking throughput

Switching capacity

Forwarding

rate

Specifications



Product codeCSS610-8G-2S+IN
CPU88E6193X
Number of 1GbE ports8
Number of 10G SFP+ ports2
Dimensions200 x 167 x 46 mm
Operating systemSwOS
Operating temperature20°C to +60°C



Powering



PoE-inPassive PoE
Supported input voltageDC jack (12 - 57 V) PoE-in (12-57 V)
Power adapter nominal voltage24 V
Power adapter nominal current0.8 A
Max power consumption without attachments5 W
Max power consumption11 W

Certification & Approvals



CertificationCE, FCC, IC
