Lower the Drawbridge for 100G Networking!
01.04.2022
Wireless Netware Technology Ltd.
All Eyes on 100 Gigabit Networking
Following the launch of the CCR2216-1G-12XS-2XQ that brought the 100G networking capacity to the list of features provided by their Ethernet routers, it appears that MikroTik is quite big on such networking speeds. Why, you wonder?

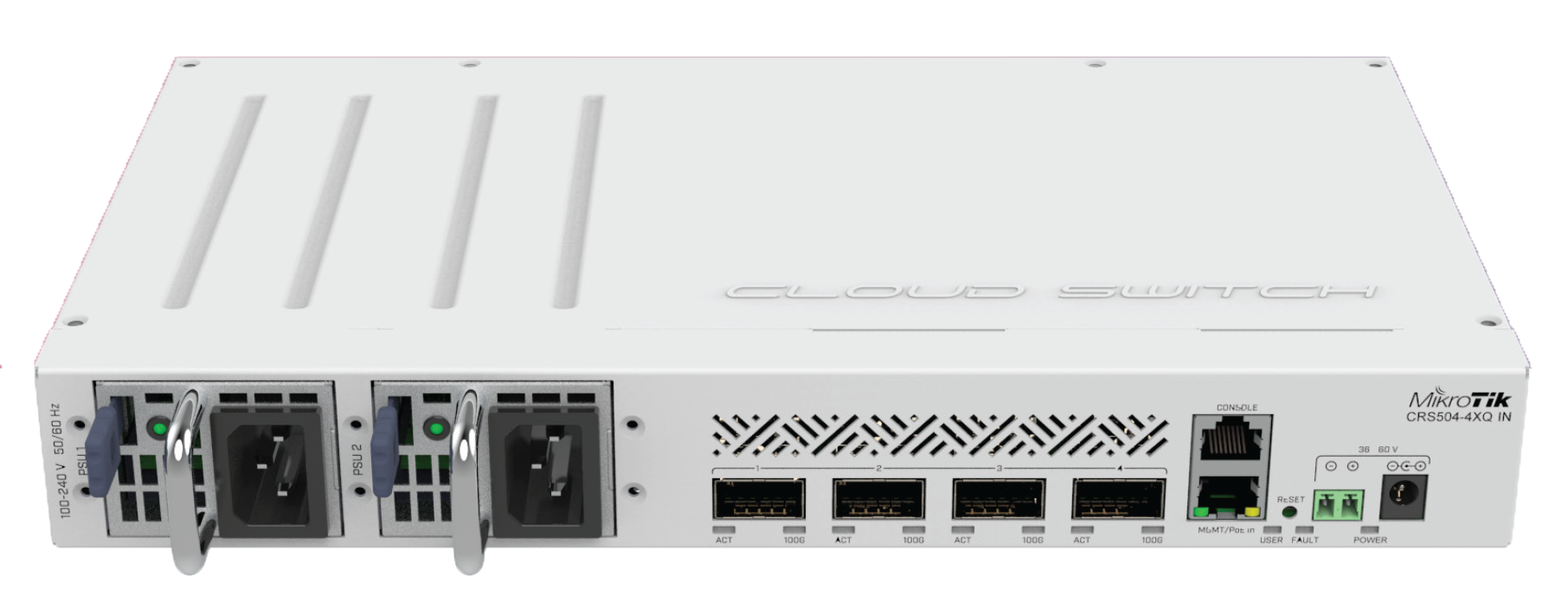

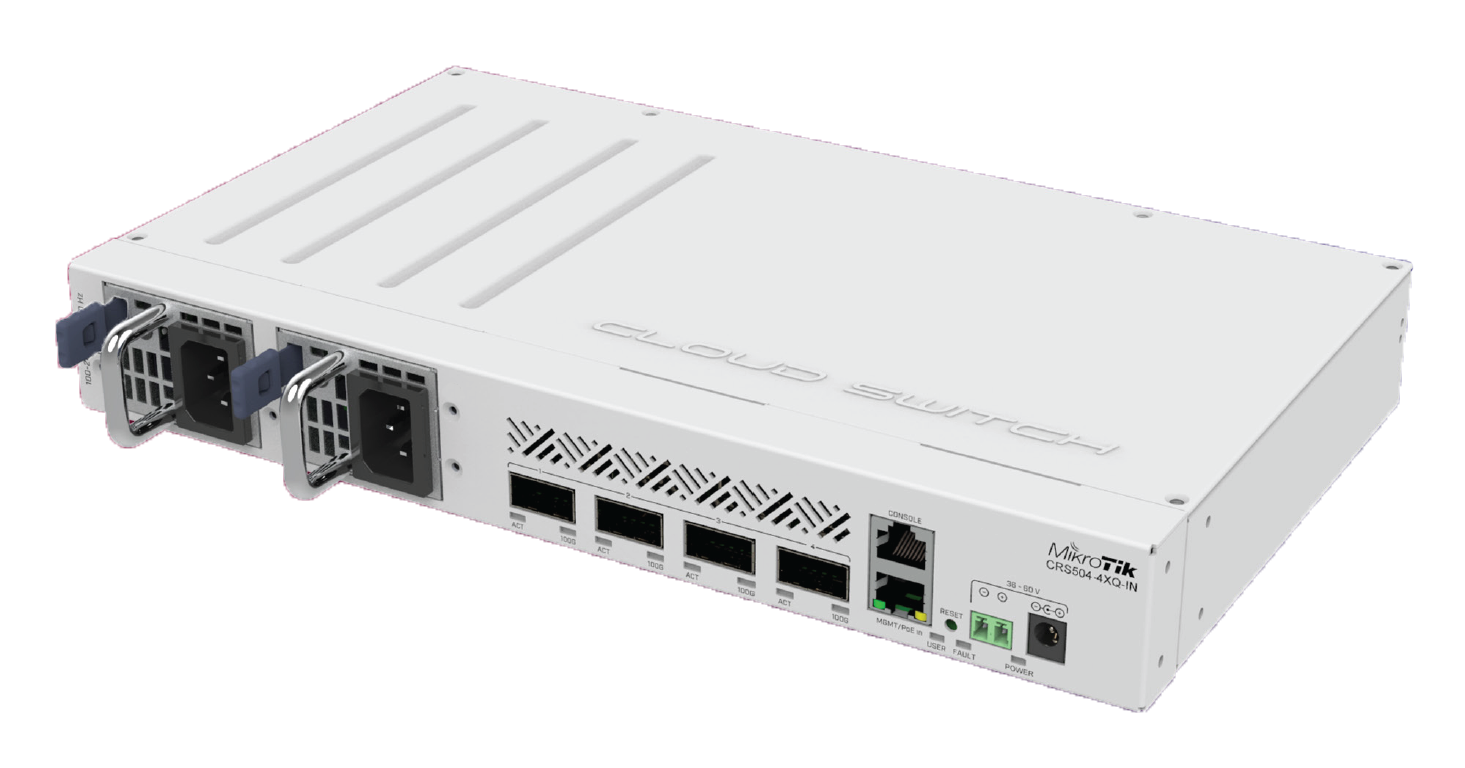

Meet our brand-new Cloud Router Switch, the CRS504-4XQ-IN!
"Affordable, Compact, Energy-Efficient"
Described by MikroTik with the three adjectives above, the CRS504-4XQ-IN can be regarded as a matching switch for the aforementioned CCR2216. It is quite clear that MikroTik is planning to expand its family of 100G hardware, and what better way to launch a new switch that goes together with your capable router?
If you're wondering whether 100G is beyond the capacity of everyday network setups, you can rest easy.
The small size and notably low power consumption of the CRS504 (25W without attachments) compared to its networking capabilities means that the 100 Gigabit tier is no longer exclusive to data centers, ISPs or large companies.
Expanding the 100G Networking Arsenal
With four QSFP28 ports, this device is a perfect Cloud Switch for transferring high-volume traffic at exceptionally fast speeds.

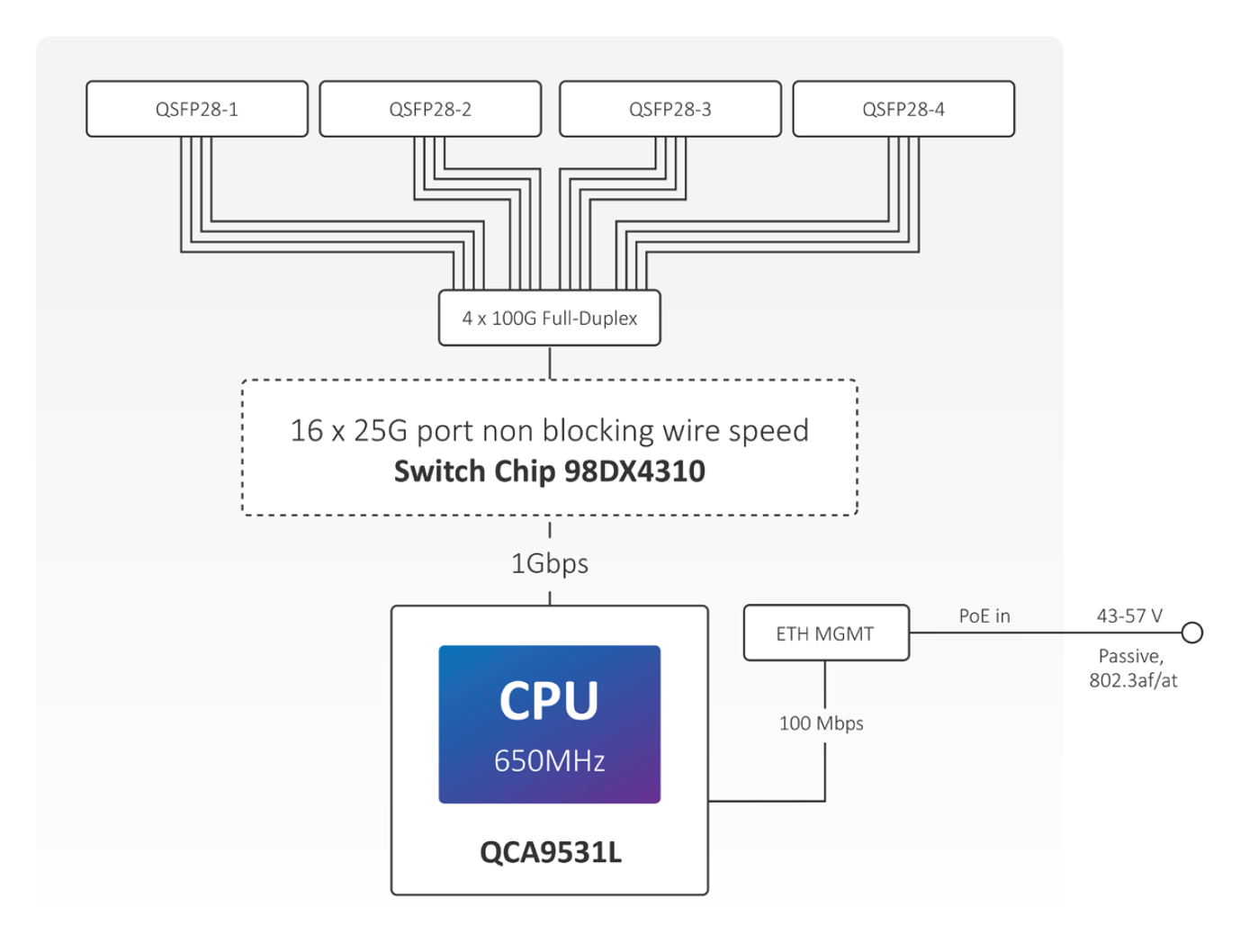

Moreover, with the CRS504, the possibilities are endless. Each QSFP28 port on this device is connected to four 25 Gigabit lines, allowing you to connect a maximum of 16 25G devices. Simply let your imagination run wild and think of the mix-and-match options! 100 Gigabits on one port, 40 Gigabits on the other, 4 25G devices on the third QSFP28 third, and maybe even some 10G or 1G cables on the fourth.
Also, there's no need to worry about any downtime. Similar to the client-favorite RB5009UG+S+IN, the CRS504 also comes with three powering options: A 36-57 V DC jack, a 2-pin terminal, and, of course, PoE-in on its single 100Mbit Ethernet port that is used mainly for management.
The CRS504-4XQ-IN runs on a single-core MIPSBE 650 MHz CPU and a 64 MB RAM. It also has a 16 MB Flash storage.
Another great advantage this switch offers is that it dual power supply units are hot-swap PSUs, meaning that you have very little to worry about downtime even when it comes to device maintenance.
Tested in High-Stakes Real-Life Projects

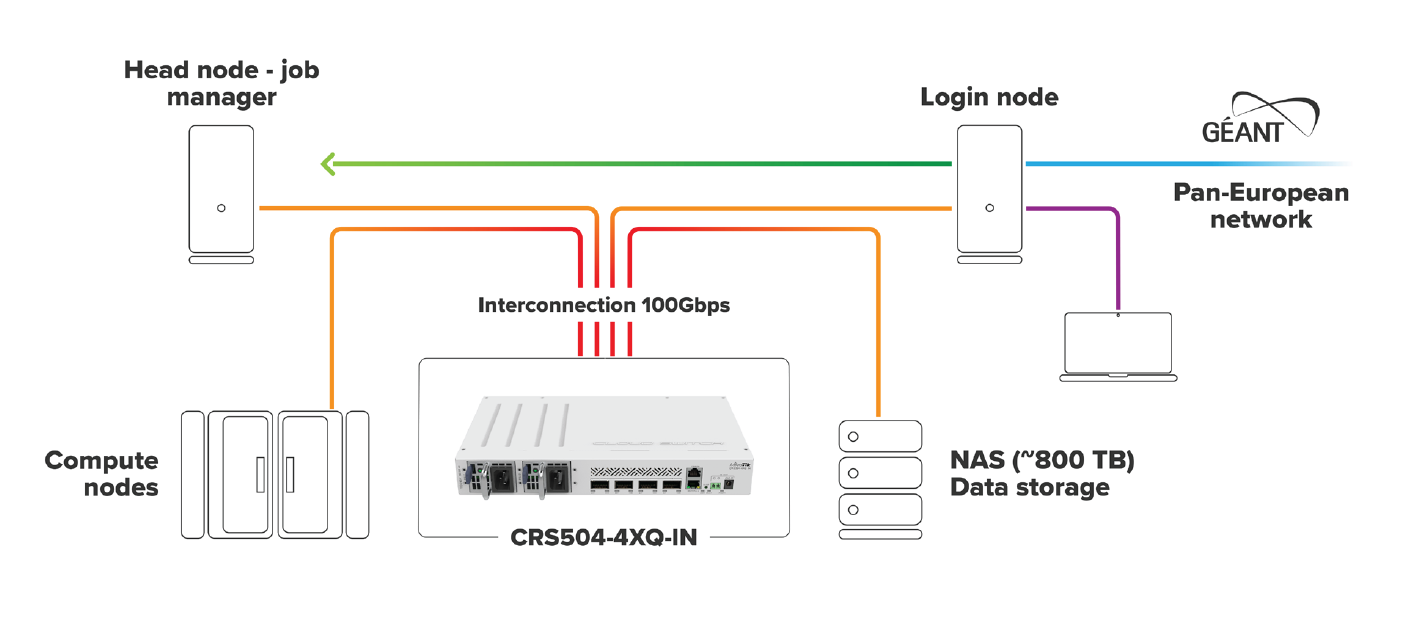

Helping Latvia become the first Baltic country to establish a 100G connection to the pan-European research network, MikroTik has been using the CRS504-4XQ-IN for their Genomics Data Network project, which is a high-capacity data network for local Latvian researchers working on cancer treatments who are in need of constant fast connections for large data transfers.
The CRS504-4XQ-IN sure has a great potential to develop your business networks and introduce 100G connectivity to your operations. If you're interested, listen to Normunds and learn more about this new MikroTik switch.
Bottomline...
MikroTik's recent launch of a number of powerful devices, most importantly the CCR2216 and now the CRS504, clearly point to the future of high-speed networking.
As data volumes grow and more client services are introduced in the virtual world (e.g. crypto, streaming services, multiple metaverses, what have you), the need for more capable networks increases as well, especially for businesses and ISPs that serve large numbers of customers.
Checking whether you can expand wouldn't go amiss! Don't hesitate to contact us if you are thinking about upgrading or restructuring your network. Apart from devices such as this new switch, there are numerous options you can use to increase connectivity efficiency and the productivity of your enterprise!
