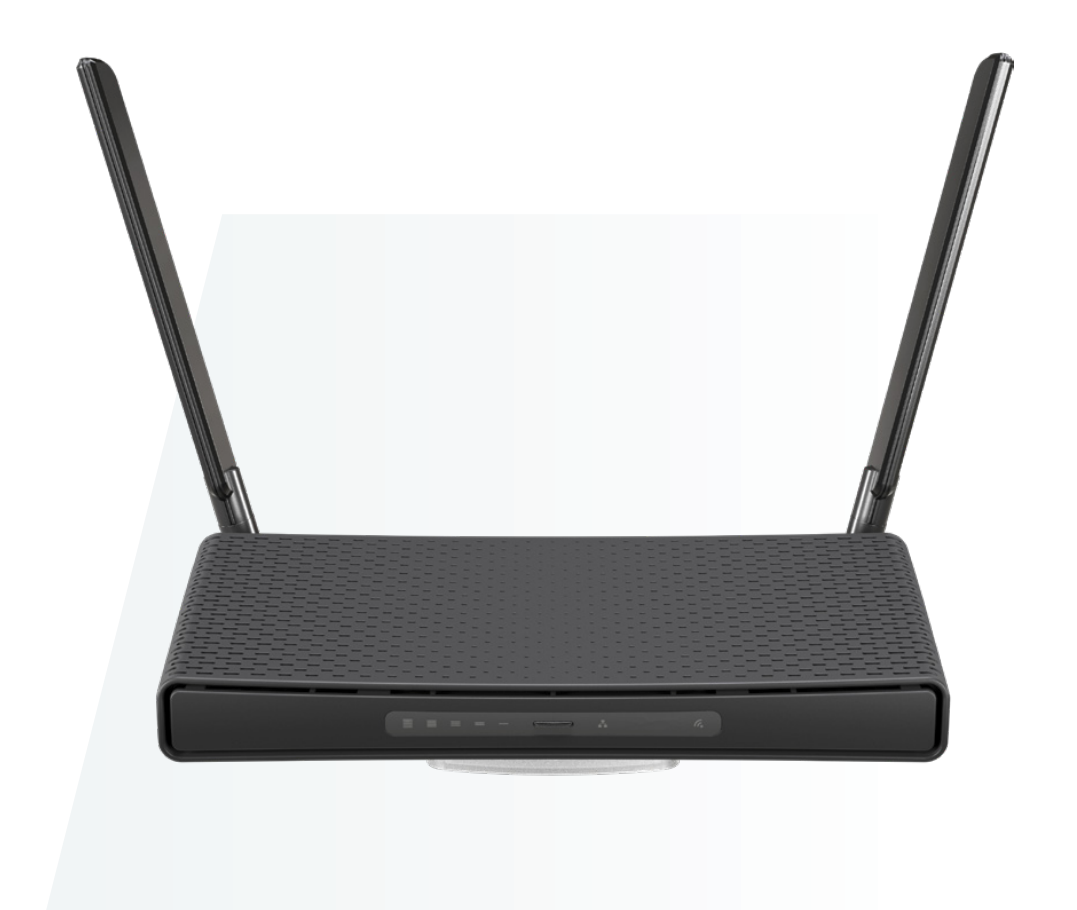

hAP ac3, The most powerful Wireless Router for Home-Office

Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

PoE-in/PoE-out

Strong dual-chain dual-band 2.4/5 GHz Wireless

Quad-core CPU

Extreme versatility powered by RouterOS

hAP ac³ - the new standard of home access points.

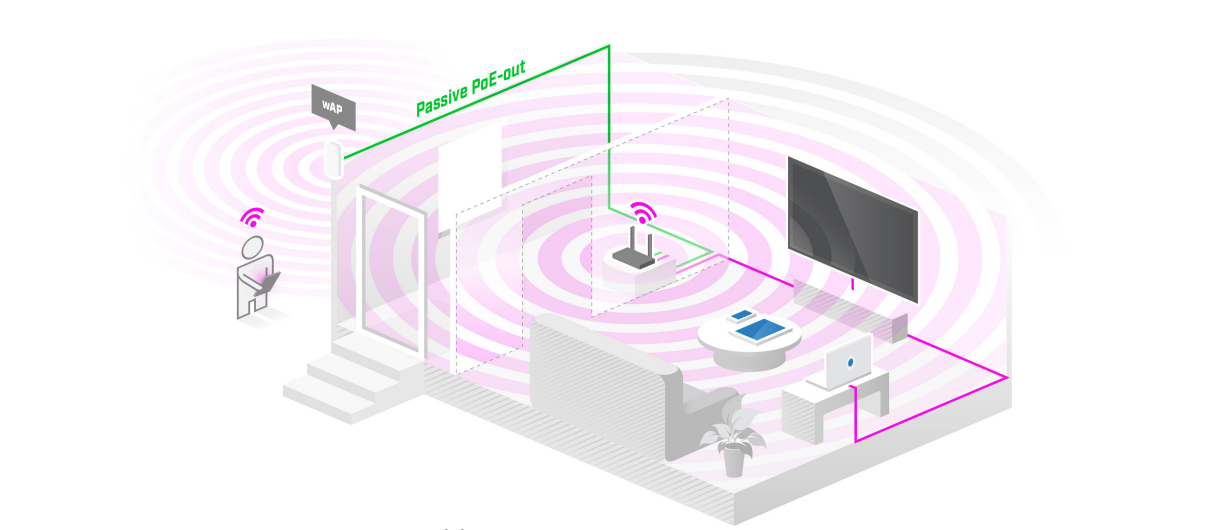

Next level signal

Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on!

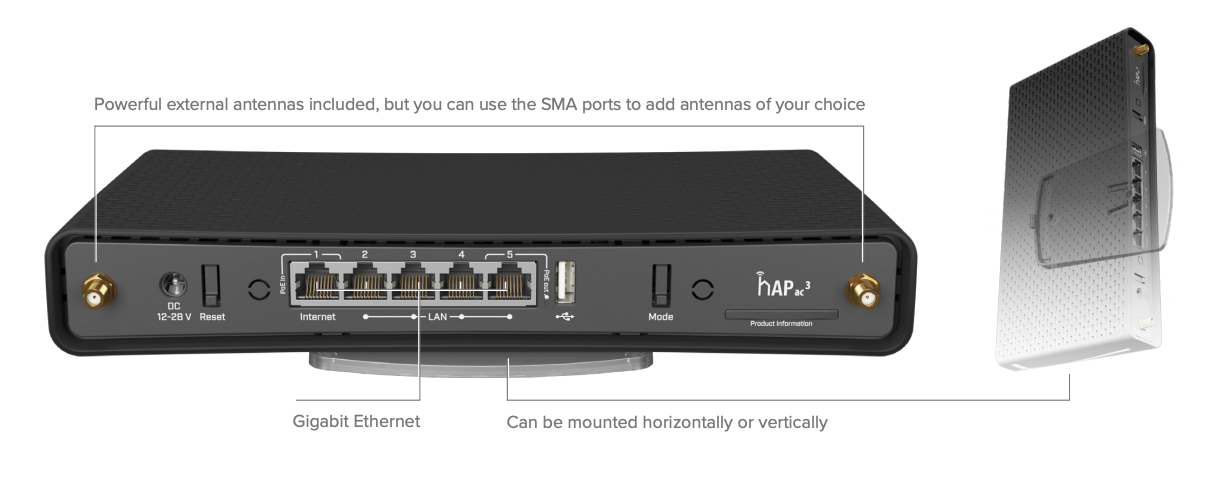

Function, form, versatility

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

Reliable connection for all your devices

Stop sharing the frequency with all your neighbors! Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else, since this frequency is less cluttered.

RouterOS – extreme versatility

Run a secure VPN from the office directly to your home, enable parental control, Quality of Service (traffic prioritization for certain needs, such as streaming), specific firewall rules, IPsec hardware acceleration, VLAN, DHCP, e-mail or SMS notifications, and so on. With RouterOS scripting you can automate a lot:



  • modify queues based on bandwidth usage;
  • complex trigger notifications, such as “Your bandwidth has reached X for Y minutes!”
  • backups and setup of additional devices, and so much more!



If you can imagine it – RouterOS can achieve it. You can even install RouterOS on a PC or a virtual machine for even more networking experiments!



We also include a free handy tool for centralized management of all your wireless MikroTik devices – the CAPsMAN. Unlike traditional controller software, CAPsMAN doesn’t require a separate device to run, it can use any existing RouterOS device in your network.



We have been making our own software since 1996. With each new version our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job. Without unnecessary paywalls.

Specifications



Product codeRBD53iG-5HacD2HnD
CPU4 core IPQ-4019 716 MHz
Number of 1GbE ports5
Number of 1GbE ports with PoE-out1
Size of RAM256 MB
Size of NAND128 MB
Wireless2.4 GHz 802.11 b/g/n dual-chain, 5 GHz 802.11 a/n/ac dual-chain
Wireless regulationsSpecific frequency range and power will be limited by country
Wireless antenna max gain2.4 GHz (3 dBi), 5 GHz (5.5 dBi)
Antenna beam width360°
Dimensions251 x 129 x 39 mm
Operating systemRouterOS, License level 4
USB port1 USB port type A
Operating temperature-40°C to +70°C



Powering



PoE-inPassive PoE
PoE-out* Passive PoE
Supported input voltageDC jack (12 - 28 V) PoE-in (18-28 V)
Power adapter nominal voltage24 V
Power adapter nominal current1.5 A
Max out per port output (input < 30 V)0.5 A
Max power consumption without attachments12 W
Max power consumption30 W

* If PoE-out used, then input voltage (DC jack, PoE-in) should be > = 24 V

Certification & Approvals



CertificationCE, FCC, IC

Wireless specifications



Rate (2.4 GHz)Tx (dBm)Rx (dBm)
1Mbit/s25-100
11Mbit/s25-94
6Mbit/s26-96
54Mbit/s23-78
MCS026-96
MCS722-73
Rate (5 GHz) Tx (dBm)Rx (dBm)
6MBit/s26-96
54MBit/s22-80
MCS026-96
MCS721-75
MCS919-70



Included parts

24 V 1.5 A

Power adapter

Base leg

and pads

K-47

fastening set

HGO indoor

antenna kit
