A 2 Gb/s 60 GHz aggregate link with a 5 GHz failover. Forget about wires or downtime!

Wireless Wire Cube2If  you  are  managing  networks  in  a  large,  busy  area  (like  a  park  or  a  stadium),  then  you  have probably experienced all kinds of problems – massive interference, signal loss during bad weather, etc. And laying wires everywhere can be clumsy and expensive, sometimes even impossible. Finally, there is a simple, secure and extremely cost-effective solution: the Wireless Wire Cube.


iOS/Android app for quick and easy configuration


60 GHz with automatic 5GHz backup connection


Gigsbit ethernet with PoE-in

Reach distance up to 800m

Compact and durable

Quad-core CPU

It is a kit of two pre-paired devices that form a blazing fast AES encrypted wireless connection. Pure plug-and-play: just point the Cubes at one another and power them on!

Plug-and-Play with 5GHz failover

The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. Traditional 60 GHz devices, however, can have limited connectivity during bad weather. But not the Wireless Wire Cube! It features an automatic 5 GHz backup connection, so you don’t have to worry about any downtime. No need for additional configuration - the 5 GHz backup connection works out-of-the-box! The Cube will take care of your connection at all times.

Reliable connection for all your devices

It can easily cover a distance of 800 meters and reach fiber-like speed. The Сube form-factor has been designed with function and durability in mind. And it attracts less unwanted attention due to its size and shape. The box includes two Cube 60G ac devices that are already paired together, power supplies, PoE injectors and mounting kits for both devices.

PtMP Solution with Cube 60G ac, mANTBox 19s and wAP 60Gx3 AP

wAP 60G AP

60 GHz Base Station with Phase array 180° beamforming Integrated antenna, specially designed for Multipoint connections.

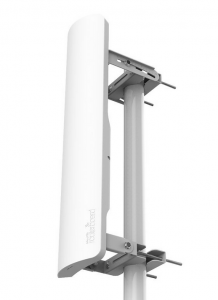

mANTBox 19s

5GHz 120 degree 19dBi dual polarization sector Integrated antenna with 720Mhz CPU, 128MB RAM, SFP, PSU and PoE

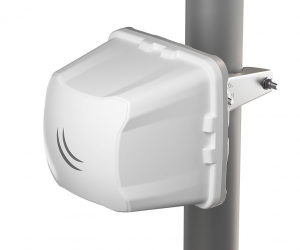

Cube 60G ac

high-speed 60 GHz CPE with Gigabit Ethernet and a 5 GHz failover. The easy and affordable way of eliminating interference and downtime!

RouterOS – extreme versatility

Run a secure VPN from the office directly to your home, enable parental control, Quality of Service (traffic prioritization for certain needs, such as streaming), specific firewall rules, IPsec hardware acceleration, VLAN, DHCP, e-mail or SMS notifications, and so on. With RouterOS scripting you can automate a lot:



  • modify queues based on bandwidth usage;
  • complex trigger notifications, such as “Your bandwidth has reached X for Y minutes!”
  • backups and setup of additional devices, and so much more!



If you can imagine it – RouterOS can achieve it. You can even install RouterOS on a PC or a virtual machine for even more networking experiments!



We also include a free handy tool for centralized management of all your wireless MikroTik devices – the CAPsMAN. Unlike traditional controller software, CAPsMAN doesn’t require a separate device to run, it can use any existing RouterOS device in your network.



We have been making our own software since 1996. With each new version our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job. Without unnecessary paywalls.

Specifications



Product codeCubeG-5ac60adpair
CPU4 core IPQ-4019 716 MHz
Number of 1GbE ports1
Number of 1GbE ports with PoE-out1
Size of RAM256 MB
Size of NAND16 MB
Wireless5 GHz 802.11a/n/ac
Wireless Chain1
Operating systemRouterOS, License level 4
WiGig chipsetQCA6335
WiGig antenna moduleWLQ14QDKR00
Supported protocol802.11ad
Max EIRP (dBm)40
Dimensions

130 x 130 x 132 mm

Operating temparature-40°C to +70°



Powering



PoE-in802.3af/at
Supported input voltagePoE-in (12-57 V)
Power adapter nominal voltage24 V
Power adapter nominal current0.8 A
Max power consumption9 W

* If PoE-out used, then input voltage (DC jack, PoE-in) should be > = 24 V

Certification & Approvals



CertificationCE, FCC, IC

Wireless specifications



Rate (5 GHz) Tx (dBm)Rx (dBm)
6MBit/s22-93
54MBit/s18-74
MCS022-93
MCS717-71
MCS915-68



Included parts

24 V 0.8 A

Power adapter

Cube mount

PoE injector

K-70 fastening set
